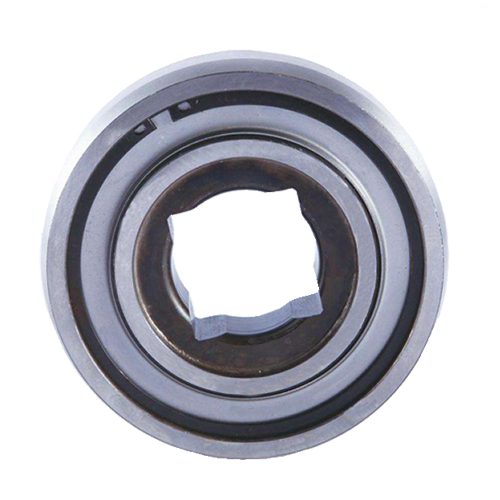

Installation precautions for square hole agricultural machinery bearings with four corners

The installation of four corner square hole agricultural machinery bearings should follow the following precautions to ensure installation accuracy and equipment stability:

Pre installation inspection:

Part quality: Check whether the dimensions of the shaft and bearing body meet the requirements of the drawing, whether there are protrusions in the corners and right angles of the shaft and bearing body, and ensure that they can fully contact the end face of the bearing.

Condition of mating surfaces: Confirm whether there are any bumps, protrusions, dust, mold sand or other attachments on the mating surfaces of the shaft and bearing body. If necessary, use an oil grinding stone, fine sandpaper or clean cloth to remove them.

. Cleaning treatment: In order to avoid collision damage during installation, a small amount of lubricating oil should be applied to the working surface of the shaft and bearing body.

Installation tools and methods:

Use special tools: During installation, auxiliary tools with good plasticity and not easy to fall off, such as copper rods, sleeves, etc., should be used to avoid directly tapping the bearings.

.

Force application surface and method:

When the bearing is installed on the shaft, force should be applied to the inner ring;

; When installing on the bearing body, apply force to the outer ring.

When applying force, it is necessary to make the force vertical and even to avoid damage to the bearing track surface caused by misalignment.

. Do not apply force to the bearing cage and sealing plate.

Use a hammer and sleeve: If installing with a hammer and sleeve, the sleeve should be tapped in the middle, and the hammer should be lightly tapped.

.

Simultaneous installation of inner and outer rings: If both the inner and outer rings are tightly fitted, a cushion plate should be used to apply force to both rings at the same time to avoid damage to the track surface caused by external force applied only to the inner ring.

.

Heating installation:

For installing bearings with large interference or large-sized bearings, the principle of thermal expansion and contraction can be used to heat the bearings in the oil tank and install them with copper rods, sleeves, and hammers.

. When heating, the temperature is generally controlled below 100 ℃, and 80-90 ℃ is more suitable. If the temperature is too high, it can cause annealing of the bearing ring raceway and rolling elements, affecting hardness and wear resistance.

After installation inspection:

Rotational flexibility: After installation, the rotational flexibility of the bearing should be checked to ensure that there is no jamming or abnormal noise.

.

Fit clearance: Check the fit clearance between the bearing and the shaft or bearing seat to ensure compliance with design requirements.

.

Other precautions:

Avoid contamination: During installation, the bearings and surrounding environment should be kept clean to prevent dust, impurities, etc. from entering the interior of the bearings.

.

Regular maintenance: After installation, bearings should be regularly maintained and serviced, such as adding lubricating grease, checking fasteners, etc.

Professional training: Installation personnel should receive specialized training and be familiar with the installation methods and precautions of bearings.

.
